Polemount Transformer
Single-phase and three-phase liquid-filled polemount transformers for overhead rural and semi-urban distribution lines. Rated from 3 kVA to 167 kVA at primary voltages from 2.4 kV to 34.5 kV.
Reliable Overhead Distribution Power

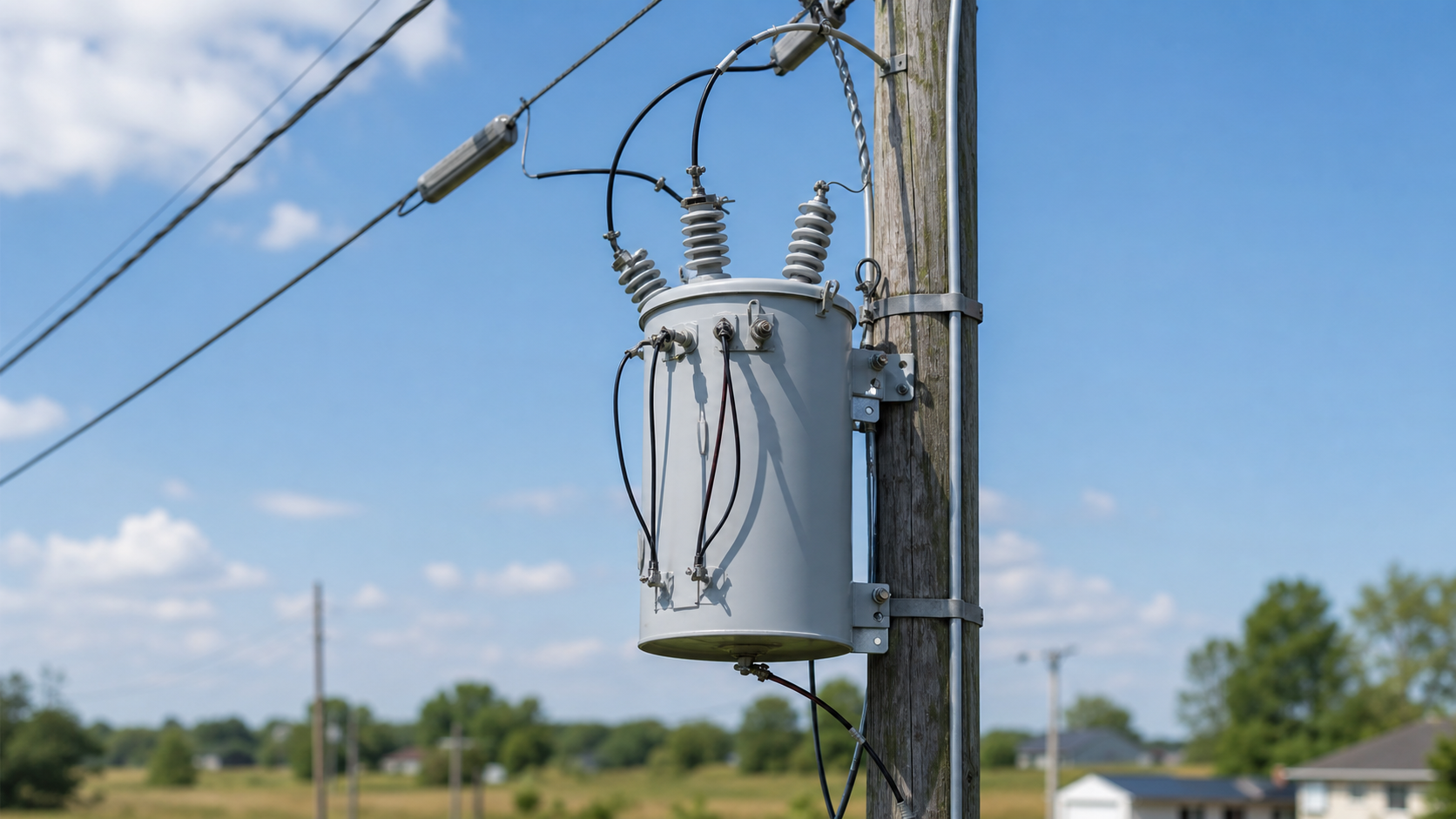

Polemount transformers step down medium-voltage overhead distribution line voltage to the 120/240 V or 120/208 V utilization levels required by residential and light commercial customers. They are the most widely deployed transformer type in rural distribution networks, mounted directly on utility poles along overhead distribution lines.
- Lightweight, compact tank design for pole mounting
- Standard 120/240 V single-phase output (with neutral)
- Three-phase and single-phase configurations
- Mineral oil insulation and cooling — maintenance-free operation
- Multiple primary voltage taps for feeder voltage variation
- Integral primary arrester mounting provisions
What's Included
- All-welded steel tank with pole-mounting provisions
- Primary voltage taps — 2 × 2.5% FCAN, 2 × 2.5% FCBN
- Mineral oil insulated and cooled (ONAN)
- Copper winding conductor (standard)
- CSP (completely self-protecting) option available
- Primary current-limiting or expulsion fuse option
- Secondary overcurrent protection — standard on CSP units
- Oil level sight gauge and drain valve
- +Completely Self-Protecting (CSP) package
- +Low-loss amorphous core for improved efficiency
- +FR3 natural ester insulating fluid
- +Integrated surge arrester provisions (primary and secondary)
- +Corrosion-resistant stainless steel or aluminum tank
- +Extended primary HV tap range (±10%)
- +Three-phase delta-wye, wye-wye, or open-delta configurations
- +Custom nameplate and identification provisions
Full Specifications
| Parameter | Value |
|---|---|
| kVA Range | 3 kVA – 167 kVA (single-phase); up to 500 kVA (3-phase) |
| Primary Voltage (HV) | 2.4 kV – 34.5 kV |
| Secondary Voltage (LV) | 120/240 V (single-phase standard) |
| Winding Configuration | Single-phase or three-phase |
| Cooling Class | ONAN |
| Insulating Fluid | Mineral oil |
| HV Taps | 2 × 2.5% FCAN, 2 × 2.5% FCBN |
| Temperature Rise | 65°C (standard) / 55°C (low-loss option) |
| Mounting | Overhead pole — integral hanger provisions |
| Primary Standard | ANSI C57.12.20 / IEEE C57.12.00 |
| Canadian Certification | CSA C88 / CSA C22.2 |
| Frequency | 60 Hz |
Built to Standard
Where It's Used
- Rural residential overhead distribution
- Agricultural and farm service connections
- Small commercial overhead service connections
- Streetlighting and site lighting circuits
- Remote telecommunications and radio sites
- Temporary construction power supply
From design and specification through factory testing, commissioning, and ongoing maintenance — Candron delivers at every phase.
- Engineering drawings and coordination studies
- Factory acceptance testing (FAT) with full reports
- Site commissioning and protection settings
- Spare parts, training, and maintenance support
Common Questions
A CSP transformer includes three built-in protective features: (1) a primary protective link (fuse) that disconnects the transformer from the distribution feeder on internal faults, (2) an internal secondary circuit breaker to protect against secondary overcurrents, and (3) lightning arresters on the primary terminals. CSP units reduce the need for separate pole-mounted protective equipment.
Standard taps are 2 × 2.5% FCAN and 2 × 2.5% FCBN on the primary winding, giving a total adjustment range of ±5% from nominal. Wider tap ranges (e.g., ±10%) are available as a custom option for lines with significant voltage regulation challenges.
Yes. Amorphous core polemount transformers offer significantly lower no-load losses compared to silicon steel core units — typically 60–70% lower. They are recommended for lightly loaded circuits where no-load losses represent a large proportion of total losses, and for utilities targeting loss reduction or carbon reduction goals.
Ready to Spec
Your Project?
Our engineering team responds with specs, lead times, and pricing the same day. Tell us what you need:
- Required kVA rating and phase (single-phase or three-phase)
- Primary voltage and connection
- Secondary voltage and neutral arrangement
- CSP or conventional protection preference
- Core type (conventional silicon steel or amorphous)
- Fluid preference (mineral oil or FR3)
- Site location and environmental conditions
- Quantity and delivery schedule
Send us your project details and we'll respond with a price, lead time, and any clarifying questions — typically within a few hours.
